CNC Busbar Processing Machine
The CNC Busbar Machine is an advanced intelligent busbar processing system designed for high-precision copper and aluminum fabrication. It combines CNC control technology with hydraulic or servo-driven mechanisms to achieve automated punching, bending, and cutting operations in a single production platform.
- CNC intelligent control system for high-precision automation
- Compatible with copper and aluminum busbars of various specifications
- Supports continuous industrial production with stable performance
- DataSheet
| Parameter | Value |
| Model | CNC Busbar Machine |
| Max Processing Thickness | 16–20 mm |
| Max Processing Width | 120–200 mm |
| Control System | CNC Intelligent Control System |
| Hydraulic / Servo Pressure | 300–500 kN |
| Punching Force | 300–500 kN |
| Bending Force | 300–500 kN |
| Cutting Force | 300–500 kN |
| Punching Range | 4–35 mm |
| Motor Power | 3 × 3–7.5 kW |
| Voltage | 380V / 50Hz |
| Machine Weight | Approx. 1300–2000 kg |
| Machine Dimensions | Standard / Customized Industrial Layout |
| Functions | Punching / Bending / Cutting / CNC Programming |

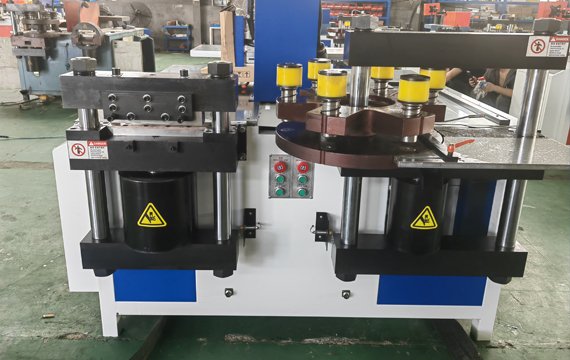

CNC Intelligent Multi-Process Control System
The CNC Busbar Machine adopts an intelligent numerical control system that enables precise programming of all processing steps. Operators can input parameters such as hole position, bending angle, and cutting length directly into the CNC interface, ensuring consistent and repeatable production results.Compared with traditional manual systems, this CNC-controlled structure significantly reduces human error and improves production accuracy. It is particularly suitable for high-volume manufacturing environments requiring strict dimensional consistency.

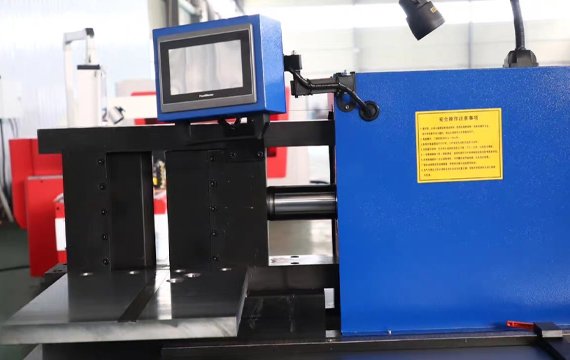

Hydraulic Hybrid Drive System
The machine integrates advanced servo or hydraulic drive technology to ensure smooth and stable force output during processing. Each operation—punching, bending, and cutting—is precisely controlled by the CNC system to maintain consistent performance across all production cycles.This stable drive system ensures clean edges, accurate hole positioning, and minimal material deformation. It also enhances machine responsiveness, making it suitable for complex busbar designs and high-precision electrical components.
Heavy-Duty Industrial Frame & CNC Automation Structure
The CNC Busbar Machine is constructed with a reinforced steel frame designed for long-term industrial operation. The rigid structure minimizes vibration during high-speed CNC movement, ensuring stable machining accuracy.The integrated CNC control cabinet coordinates all machine functions, allowing seamless switching between different processing tasks. This automation design significantly reduces manual labor while increasing overall production efficiency in electrical manufacturing plants.
Yes. The CNC system allows flexible programming, so users can process busbars of various lengths without physical limitations.
No. Once parameters are set, the CNC system automatically controls punching, bending, and cutting operations with high precision.
Yes. The CNC controller can store multiple processing programs for different product designs, improving production efficiency.
