Quick Answer
A 3-in-1 busbar processing machine integrates dedicated punching, hydraulic shearing and bending stations within one machine frame.
The operator normally moves and positions the busbar at the required station for each operation. A PLC or digital measuring system may provide a positioning reference, but this does not mean that material feeding or the complete production sequence is automatic.
Select the machine according to the operation-specific capacity, material grade and temper, width × thickness, hole and slot requirements, bend geometry, finished tolerances, production mix, workpiece handling and FAT criteria.
What Is a 3-in-1 Busbar Processing Machine?
A 3-in-1 busbar processing machine combines three dedicated working stations for punching, hydraulic shearing and bending copper or aluminum busbars.
The integrated frame reduces the need to install three separate machines and allows operators to move the workpiece between the required stations within one working area.
It should not be described as completing every process with one loading. The operator may need to reposition, rotate and support the busbar according to the hole position, cutting length, bending sequence and finished-part geometry.
Station operation, material feeding, digital measurement, tooling and simultaneous-working capability vary by configuration and should be listed separately in the technical quotation.
Compare 3-in-1 Busbar Processing Configurations

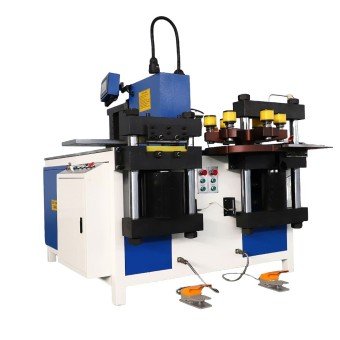

A compact three-station configuration for workshops processing smaller and medium busbars. Confirm the operation-specific capacity, hole range, tooling and positioning method against your drawings.
A 500 kN configuration for mixed copper and aluminum busbar orders. Confirm the material grade, width × thickness, punching dies, bending tooling and workpiece-support requirements.

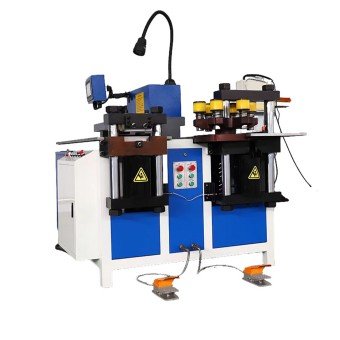

A heavy-duty configuration intended for larger busbar projects. Confirm the approved capacity of each station, hydraulic duty, tooling, workshop clearance and long-workpiece support.

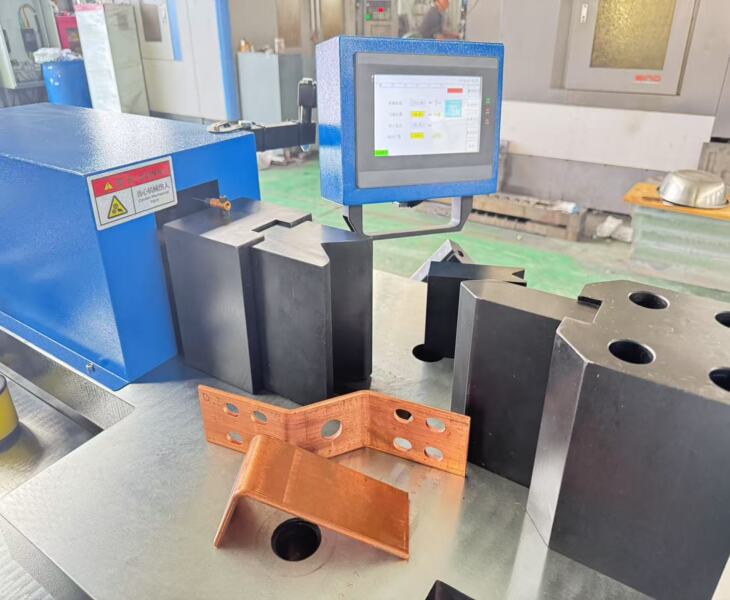

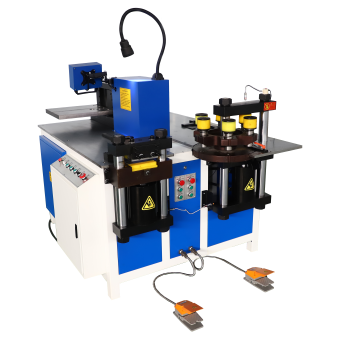

Used when a project requires non-standard holes, slots, bending profiles, voltage, material-support devices or a specific workshop layout.

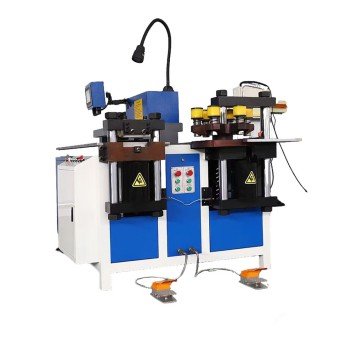

500 kN 3-in-1 Busbar Machine Reference Configuration
| Item | Published Reference | Confirm Before Ordering |
|---|---|---|
| Configuration | Three hydraulic stations for punching, shearing and bending | Station sequence and simultaneous operation |
| Material and Range | Copper or aluminum; overall 15–200 × 3–15 mm | Grade, temper and capacity by operation |
| Punching | 500 kN; round holes Ø4.3–Ø35 mm | Hole type, edge distance and die list |
| Shearing and Bending | 500 kN each; flat bending from 0–90° | Blade, radius, short leg, springback and vertical tooling |
| Positioning and Handling | PLC-assisted measurement, manual feeding; bars up to 4,000 mm with roller support | Positioning method, operator and support layout |
| Hydraulic and Power | 31.5 MPa; 10–12 kW; 380 V, 50 Hz, 3 phase | Final hydraulic and electrical configuration |
A 3-in-1 machine is suitable for flexible integrated processing, but it is not automatically the best option for every output requirement. Compare the complete production cycle, workpiece movement, changeover and operator involvement.
What Information Is Required Before Quotation?
| Information | Details to Provide | Used to Confirm |
|---|---|---|
| Material | Grade or alloy, temper, width × thickness and raw length | Capacity, force and handling |
| Finished Drawing | Holes, slots, cut length, bends, radii and tolerances | Stations, tooling and sequence |
| Production | Batch mix, output, changeovers and operator number | Configuration and cycle method |
| Acceptance | Samples, instruments, tolerances and FAT criteria | Testing and contract scope |
Send representative drawings and material specifications before model selection. Do not select a machine only by nominal force or catalogue maximum size.
Fenghua 3-in-1 Busbar Processing Machine Features
Punching is a three-process operation that can be performed on a single machine, eliminating the need to stop equipment.
Parameters for the processes can be preset for continuous batch processing of busbars, and specifications can be quickly adjusted.
The system automatically adjusts the pressure according to the material of the busbar.
Customized designs can be created based on the busbar material, size, bending angle, and workshop environment.
How to support customization

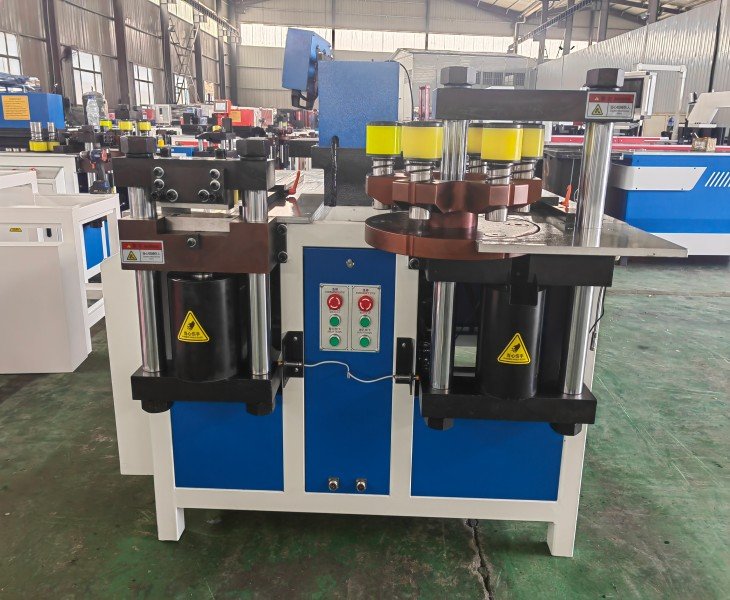

FengHua three-in-one busbar processing machine can provide customized busbar processing machines according to your busbar specifications, dimensions, bending angles, process requirements, and production line environment. This will improve the production efficiency of your production line and reduce rework rates.

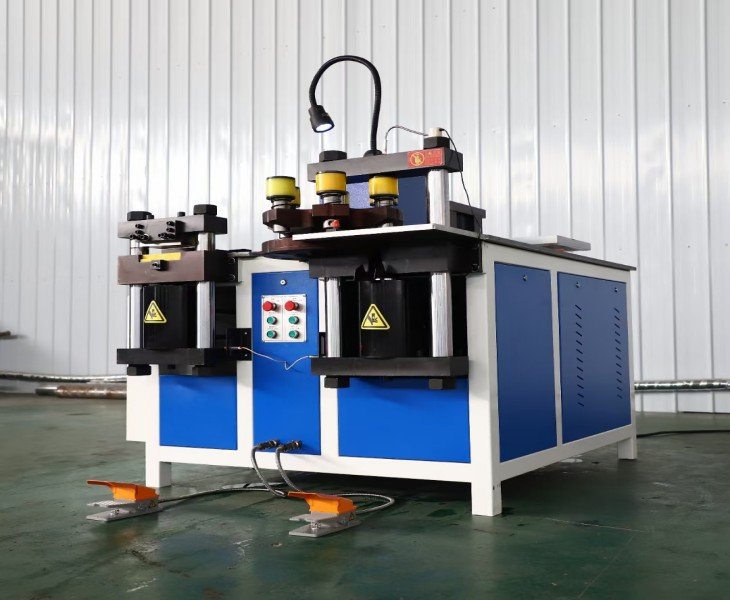

Achieving multi-functionality in a single machine
Fenghua’s 3-in-1 busbar processing machine is and a hydraulic system, which allows different processing steps to be completed automatically in sequence, eliminating material handling and machine downtime. This makes your production process smoother, reduces waste, and operating time.

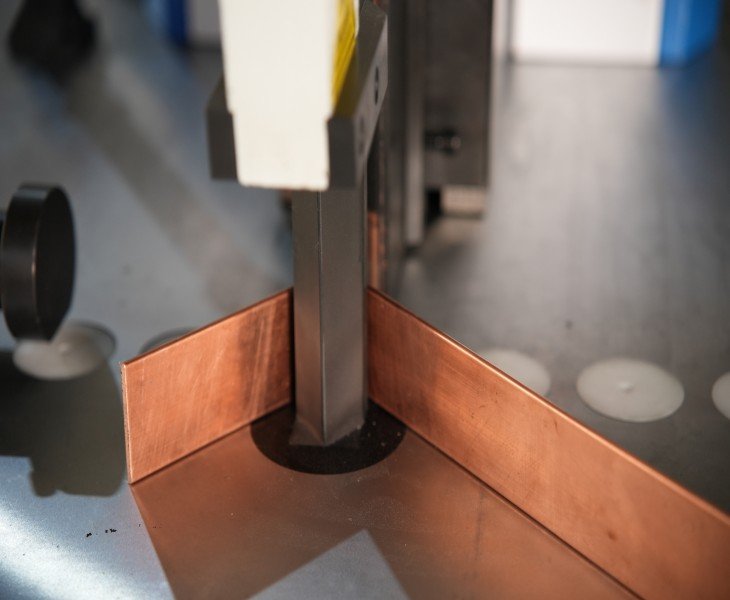

How to achieve batch processing
Fenghua’s 3-in-1 busbar processing machine is equipped with a visual touch control system. It also features a memory function, enabling continuous batch processing of busbars after setting the program parameters once. It supports quick switching between different high-specification busbar materials parameter ideal for large-volume production projects. For adjustments and to shorten delivery times.

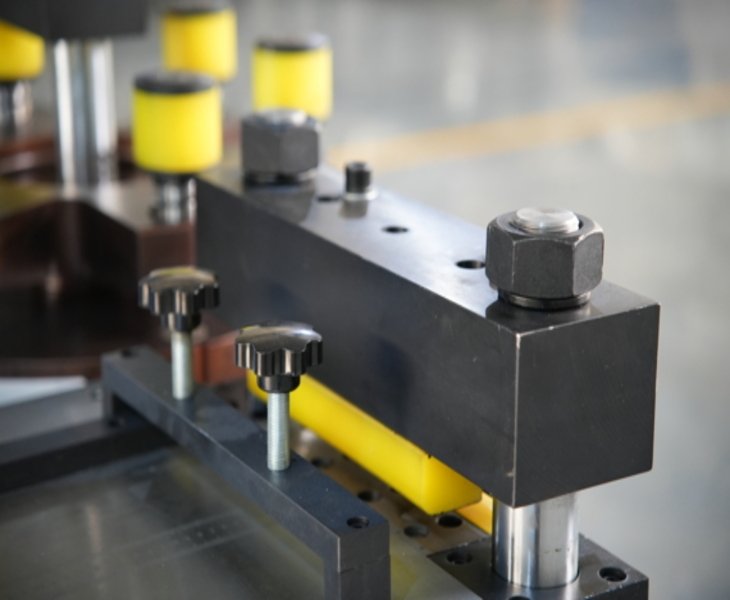

How to Compare China’s Top 10 Busbar Machine Manufacturers
There is no universally recognized official ranking of China’s top 10 busbar machine manufacturers. Published lists should be used only to create an initial supplier shortlist.
For a 3-in-1 project, compare the exact machine proposed for your drawings rather than relying only on company size, nominal force or promotional ranking.
| Comparison Factor | What to Confirm | Evidence to Request |
|---|---|---|
| Real Model | Exact model, current configuration and legal supplier | Nameplate, specification and machine photos |
| Station Capacity | Punching, shearing and bending limits separately | Signed capacity table and sample parts |
| Handling and Control | Manual, digital, servo or automatic functions | Control list and live demonstration |
| FAT and Service | Samples, criteria, documents, warranty and parts | Signed FAT plan and service scope |
For a broader sourcing shortlist, review our guide to 10 Busbar Machine Manufacturers in China. The guide is published by FengHua and is not an official ranking or independent certification.
A 3-in-1 busbar processing machine solves all your production process problems.
Multifunctional and easy to operate, it makes your batch busbar processing and multi-specification switching easier.

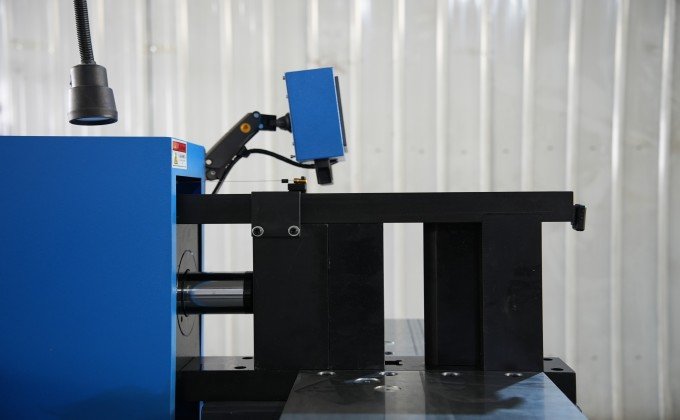

FengHua’s 3-in-1 busbar processing machine uses a hydraulic system and optimized molds to ensure stable pressure during the bending process, allowing for smooth busbar assembly, long-term, continuous, and stable busbar processing.

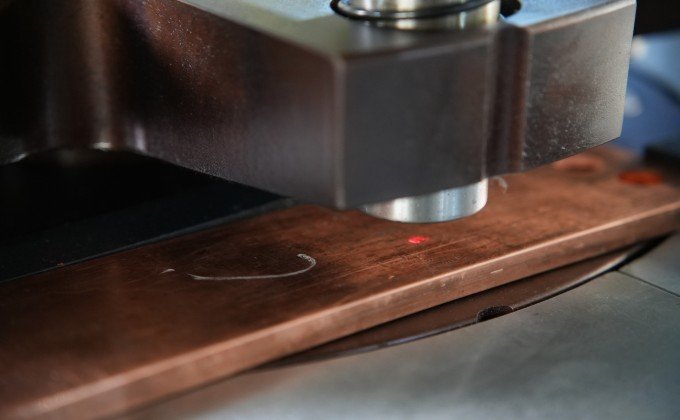

FengHua’s 3-in-1 busbar processing machine has an intuitive operation interface with all functions integrated on a single control panel. Workshop the equipment independently after simple training, freeing your production line from reliance on highly skilled operators.
The machine integrates dedicated punching, hydraulic shearing and bending stations within one frame. The operator moves the busbar to the required station for each process.
Not in every configuration. In the 500 kN reference configuration, loading, longitudinal movement, stop adjustment and alignment are manual, while the PLC-assisted measuring system provides a dimensional reference.
The reference configuration is designed for sequential operation. Simultaneous operation requires separate confirmation of the hydraulic system, electrical load, control logic and safety arrangement.
Yes, subject to technical confirmation. Capacity depends on material grade or alloy, temper, width, thickness, operation, tooling and finished geometry.
No. Punching, shearing and bending capacities must be verified separately according to the material, hole size, blade, tooling radius, geometry and acceptance requirements.
An automatic punching-and-shearing line may be more suitable for long repetitive batches requiring servo feeding, nesting, drawing import, production-data functions or unattended cycles.
Provide the material grade and temper, width × thickness, raw length, hole and slot dimensions, cutting length, bend direction, angle, radius, tolerances, batch mix, required output, voltage and drawings.
Use representative material and drawings to test punching, shearing, bending, positioning, repeatability, tooling, safety, documents and spare parts against the agreed FAT criteria.
