Hydraulic Busbar Machine
The Hydraulic Busbar Machine is a high-efficiency industrial system designed for copper and aluminum busbar processing. It integrates punching, bending, and cutting functions into a single hydraulic-driven platform, providing stable and precise operation for electrical manufacturing industries.
- High-pressure hydraulic system ensures stable multi-process performance
- Suitable for copper and aluminum busbars with different specifications
- Industrial motor-driven system for continuous and reliable operation
- DataSheet
| Parameter | Value |
| Model | Hydraulic Busbar Machine |
| Max Processing Thickness | 16–20 mm |
| Max Processing Width | 120–200 mm |
| Hydraulic Pressure | 300–500 kN |
| Punching Force | 300–500 kN |
| Bending Force | 300–500 kN |
| Cutting Force | 300–500 kN |
| Punching Range | 4–35 mm |
| Motor Power | 3 × 3–5.5 kW |
| Voltage | 380V / 50Hz |
| Machine Weight | Approx. 1200–1800 kg |
| Machine Dimensions | Customizable / Standard Industrial Size |
| Functions | Punching / Bending / Cutting |

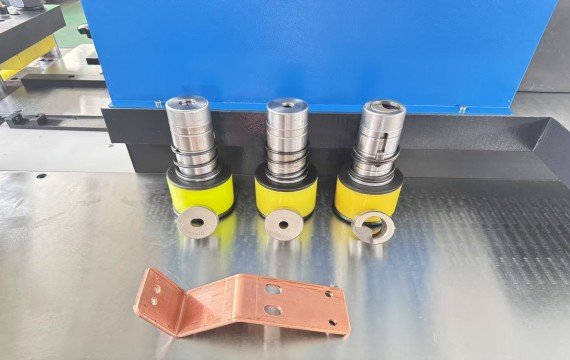

Multi-Function Integrated Processing System
The Hydraulic Busbar Machine adopts a three-in-one integrated structure, combining punching, bending, and cutting stations within one compact machine body. Each processing module works independently, allowing flexible operation based on production requirements.This integrated design reduces material handling time between different machines and significantly improves production efficiency in your workshop. It is especially suitable for batch production environments where precision and speed are critical.

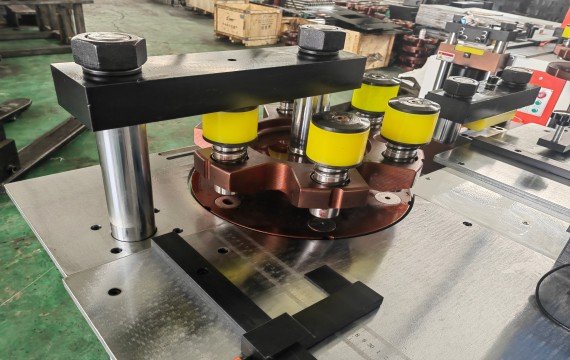

High-Stability Hydraulic Drive System
The machine is equipped with an advanced hydraulic power system that delivers consistent and controllable pressure output. During busbar processing, the system ensures stable force distribution across punching, bending, and cutting operations.This results in smooth processing edges, reduced deformation risk, and improved dimensional accuracy of finished busbars. The hydraulic system also enhances long-term operational stability under continuous industrial workload.

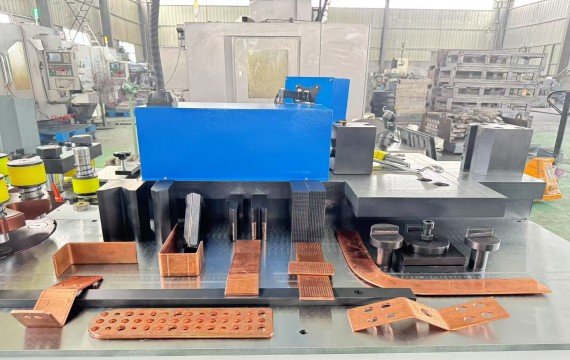

Heavy-Duty Machine Structure & Industrial Motor System
The machine frame is built from high-strength welded steel, ensuring rigidity and long-term durability. The heavy-duty structure minimizes vibration during operation, which helps maintain processing accuracy.Industrial-grade motors provide continuous power support for all three processing stations. This ensures stable operation even under high-load production conditions, making the machine suitable for large-scale electrical manufacturing plants.
Yes. There is no fixed limitation on busbar length. Users can freely cut raw materials according to project requirements.
Yes. The system is designed to handle both copper and aluminum materials with stable processing performance.
Yes. The punching dies are modular and can be replaced to match different hole diameters and electrical component standards.
