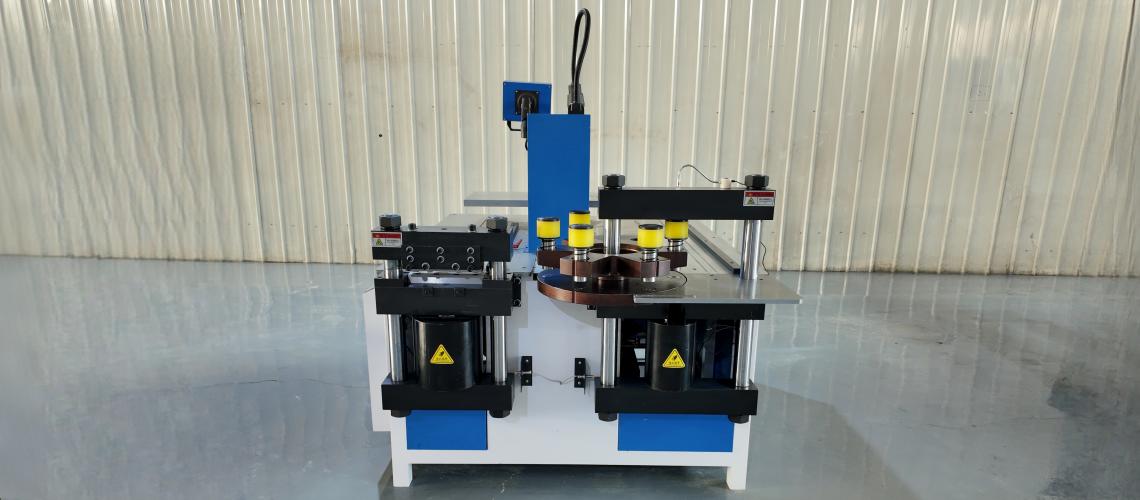

CNC Positioning Busbar Processing Machine
The CNC Positioning Busbar Processing Machine is designed to perform high-precision positioning, punching, shearing, and bending operations on busbars. Equipped with an intelligent positioning system and CNC automation technology, it ensures precise alignment and highly efficient processing.
- Utilizes CNC positioning technology to achieve high-precision machining.
- Suitable for processing both copper and aluminum busbars.
- Engineered specifically for production environments that demand precision manufacturing.
- DataSheet
| Parameter | Value |
| Model | CNC Positioning Busbar Processing Machine |
| Max Processing Thickness | 16 mm |
| Max Processing Width | 200 mm |
| Punching Force | 500 KN |
| Cutting Force | 500 KN |
| Bending Force | 500 KN |
| Positioning Accuracy | ±0.10 mm |
| Repeat Positioning Accuracy | ±0.05 mm |
| Punching Range | Φ4.3 – 35 mm |
| Control System | CNC Servo Control |
| Servo Motor | Multi-axis servo system |
| Motor Power | 3 × 5.5 kW |
| Feeding System | Automatic positioning clamp |
| Processing Speed | 10 – 150 operations/min |
| Voltage | 380V |
| Machine Weight | Approx. 4800 kg |
| Machine Dimensions | 6500 × 1700 × 1800 mm |
| Functions | Punching / Cutting / Bending / Positioning |
| Material | Copper / Aluminum |
| Packaging | Standard wooden box |

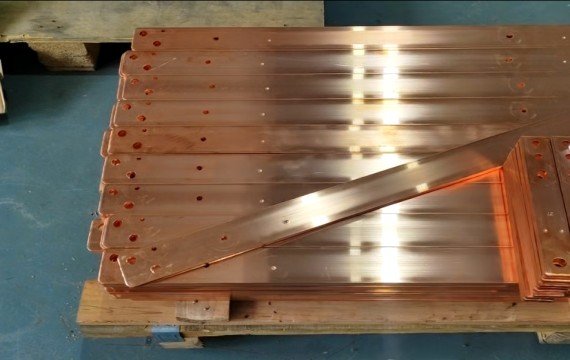

High-Precision CNC Positioning System
The CNC Positioning Busbar Processing Machine is equipped with an advanced CNC positioning system capable of automatically locating processing points with extremely high precision. With a positioning accuracy of up to ±0.10 mm, it effectively eliminates errors associated with manual measurement, ensuring consistency in hole spacing and cutting positions.
Automatic Feeding and Clamping System
The CNC Positioning Busbar Processing Machine employs an automatic feeding and clamping mechanism that securely holds the busbar throughout the processing cycle. It supports continuous feeding, thereby reducing the need for manual handling and significantly enhancing workflow efficiency.
Intelligent Production Control System
Via the CNC control interface, operators can easily input and manage processing programs. The system features a parameter storage function, allowing for rapid switching between different production tasks. The machine’s real-time monitoring and automated operation capabilities not only improve production consistency but also reduce reliance on the operator’s individual skills and experience.
Yes, the automatic positioning and feeding functions reduce manual labor requirements and accelerate the overall production workflow.
Yes, it is ideally suited for processing busbars that feature multiple hole positions and require strict precision regarding hole spacing.
