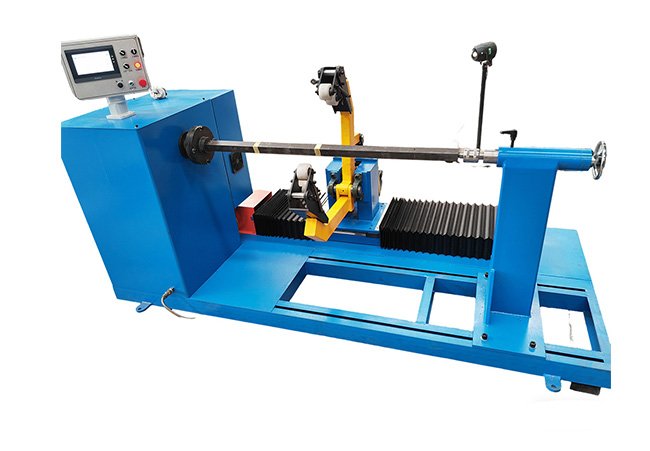

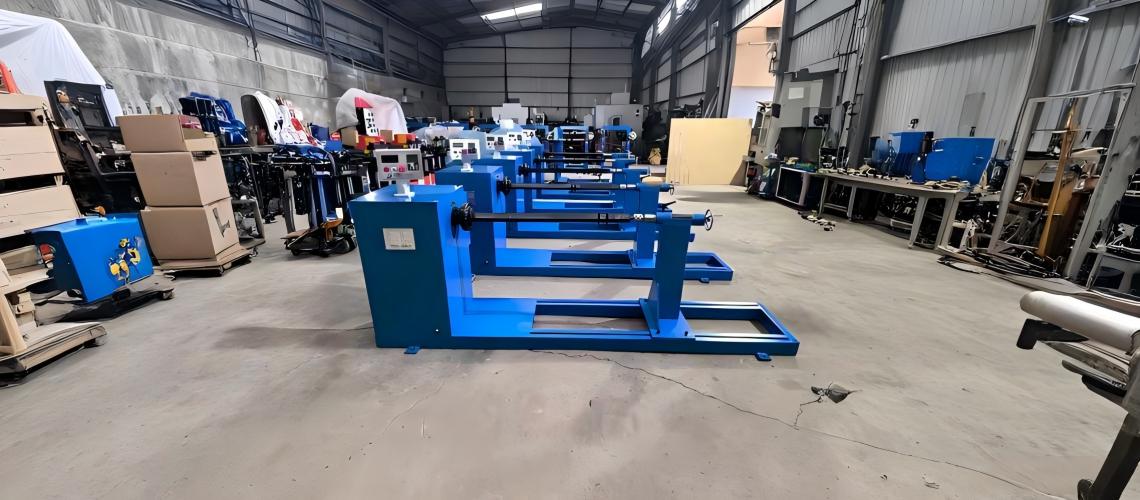

Transformer Winding Machine
The transformer winding machine supports a wide range of wire gauges and winding modes, ensuring consistent coil quality. This equipment is an ideal choice for manufacturing power transformers, distribution transformers, and dry-type transformers, capable of significantly boosting production speed while maintaining high precision.
- Supports various coil types and dimensions
- Features automatic wire feeding and tension control capabilities
- Offers high repetitive precision with minimal need for manual intervention
- DataSheet
| Parameter | Value |
| Model | Transformer Winding Machine |
| Max Wire Diameter | 16 mm |
| Min Wire Diameter | 0.5 mm |
| Max Coil Diameter | 800 mm |
| Max Coil Height | 600 mm |
| Winding Speed | 50 – 400 rpm |
| Wire Tension Accuracy | ±0.5 N |
| Layer Pitch Accuracy | ±0.2 mm |
| Motor Power | 7.5 kW |
| Voltage | 380V |
| Control System | CNC Touchscreen Control |
| Machine Weight | Approx. 1800 kg |
| Machine Dimensions | 2500 × 1500 × 1800 mm |
| Functions | Wire Feeding / Coil Winding / Layer Control / Automatic Stop |
| Wire Material | Copper / Aluminum |
| Packaging | Standard Wooden Box |
Adjustable Tension and Speed

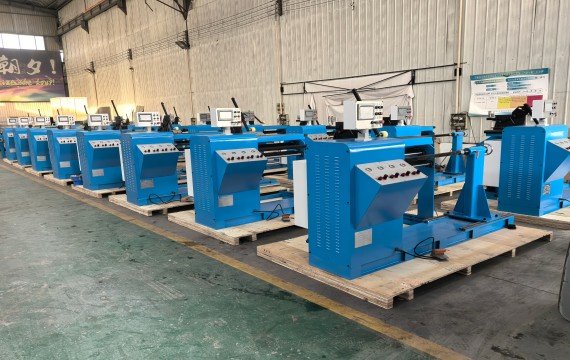

The Transformer Winding Machine is equipped with an adjustable tension mechanism and a variable-frequency motor, enabling precise control tailored to various wire gauges and coil dimensions. Operators can configure parameters such as wire tension, rotational speed, and layer spacing, thereby ensuring consistent product quality and effectively preventing wire deformation.
Heavy-Duty Frame and Durable Components

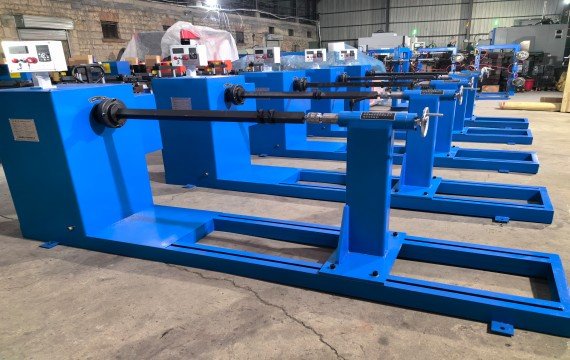

The entire machine is constructed from reinforced steel, ensuring exceptional stability even during high-speed winding operations. The synergistic operation of industrial-grade motors, precision bearings, and CNC drive components guarantees smooth performance and a long service life for the equipment.
User-Friendly Operation Experience

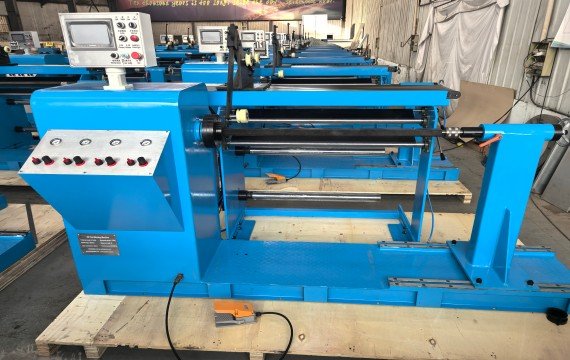

The Transformer Winding Machine features a touchscreen interface that allows operators to monitor the entire winding process in real time. The system includes an automatic alarm function; should a wire breakage or winding misalignment be detected, an immediate alert is issued, thereby effectively minimizing downtime for maintenance.
Yes, it supports both copper and aluminum wires and can accommodate a wide range of wire diameters, ranging from 0.5 mm to 16 mm.
Its adjustable tension system, combined with precision CNC controls, maintains consistent wire tension, thereby effectively minimizing the risk of wire deformation and breakage.
